Explosion-Proof Touch Solution
The next-generation embedded explosion-proof touch module is specifically engineered for integration into explosion-proof cabinets and enclosures.
This all-in-one touchscreen innovation replaces traditional peripheral devices, delivering a safe, stable, and highly cost-effective touch solution for hazardous explosive environments through its high-strength panel and fully-shielded metallic construction.
Core Advantages
Ease of Operation
Featuring a graphical human-machine interface (HMI) with rich and intuitive information display, it significantly reduces training costs and operational barriers.
Mature and Reliable Touch Core
Built on market-proven explosion-proof touch technology, the module comes standard with a cost-effective 7-inch MCGS core and supports optional kernels from brands such as Siemens, Weintek, and Fancy. Available in sizes ranging from 4.3 to 15.6 inches, it ensures highly sensitive and stable operation while meeting diverse industrial scenarios and process requirements.
Highly Integrated Design
It fully replaces explosion-proof mice, keyboards, and trackballs, upgrading viewing windows into touch interactive interfaces and enabling seamless integration with equipment.
Space Efficiency
The large touchscreen consolidates multiple functions, drastically reducing physical buttons and openings, enhancing enclosure protection rating, and freeing up internal space of cabinets and boxes.
Easy Installation & Seamless Line Upgrade

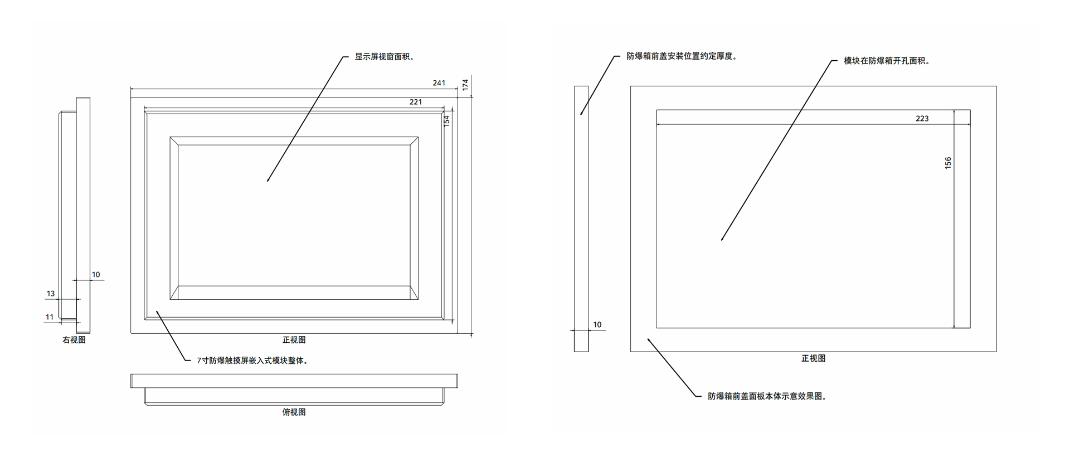

Using standard window mounting methods, it requires no extra tools or expertise, directly replacing original window glass. With zero production line modification and no learning curve for deployment, it greatly reduces upgrade time and cost.
Structural Design & Technical Features
Ultra-High-Strength Protective Panel
Features a 10mm thick tempered glass viewport integrated with high-strength composite explosion-proof materials. This design offers exceptional mechanical strength, impact resistance, abrasion resistance, and scratch protection, alongside oil and chemical corrosion resistance. It ensures long-term reliable operation in harsh industrial environments.
Full-Cover Sheet Metal Structure &
Lightweight Design
The housing employs a full-cover process with high-quality galvanized sheet metal, providing robust structure and excellent electromagnetic shielding (EMI) to effectively block internal and external interference, ensuring stable signal transmission for internal circuits. The back incorporates lightweight materials combined with metal profiles, resulting in a simple yet solid overall structure that is lighter in weight for easier installation and maintenance. 304 stainless steel screws and flanges are used at connection points, further enhancing overall stability.
Flexible & Customizable Core Solutions
Supports customer-specified industrial touchscreen cores from various brands (e.g., Siemens, MCGS, Weintek, Fancy, Proface) and in multiple sizes. This ensures full compatibility with users' specific software and functional requirements, enabling seamless system integration.
Intelligent Touch & High-Reliability Design
Equipped with proprietary touch recognition algorithms capable of anti-misoperation, moisture rejection, gloved-hand operation, and high-precision point positioning. Critical internal components undergo rigorous industrial-grade screening and processing. Coupled with an efficient thermal dissipation design, this guarantees stable performance under 24/7 continuous operation and delivers a long service life.
Full-Cover Sheet Metal Structure & Lightweight Design

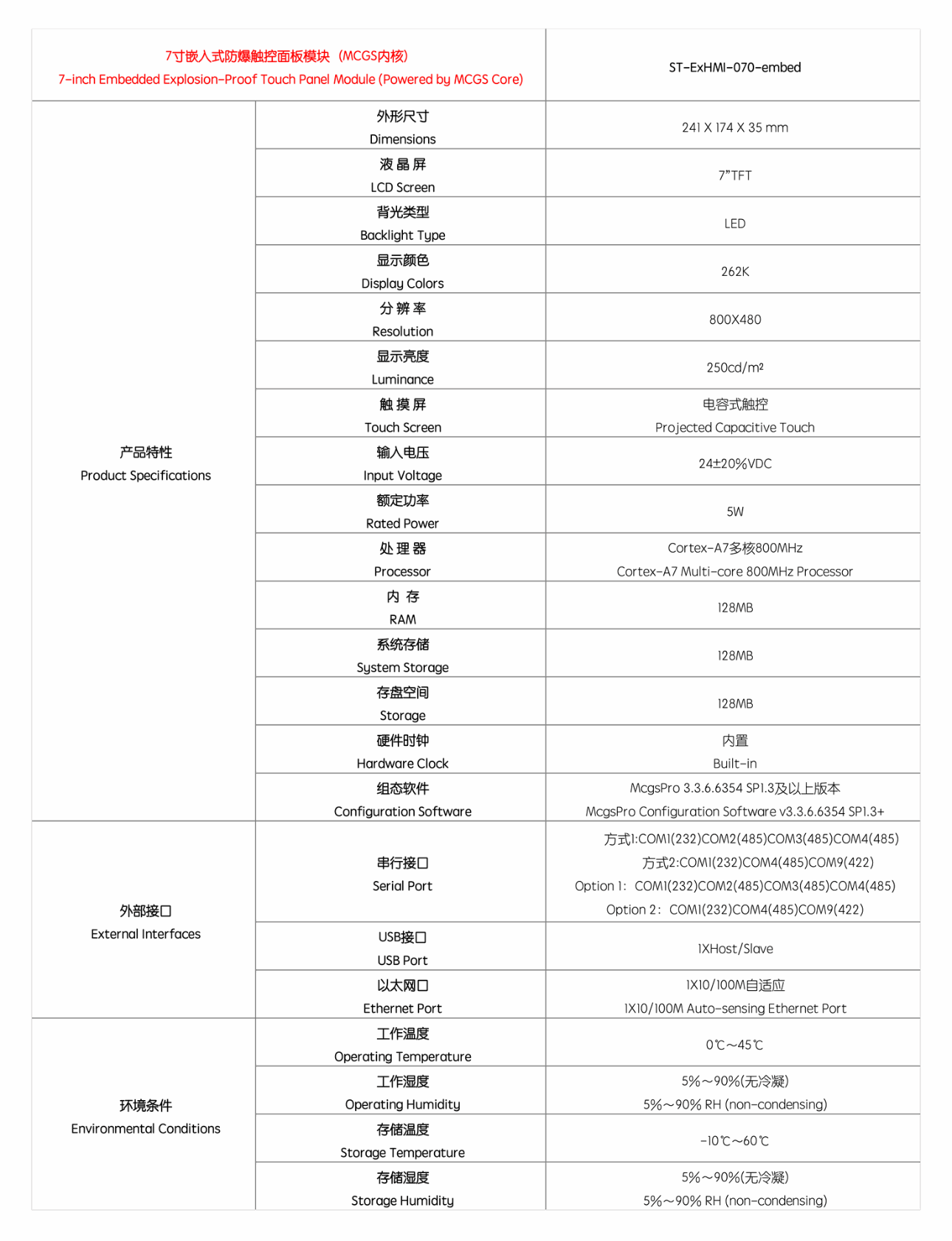

Product Specifications
Application Scenarios

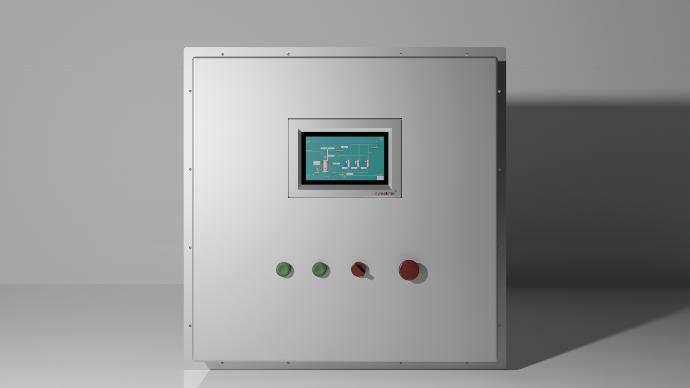

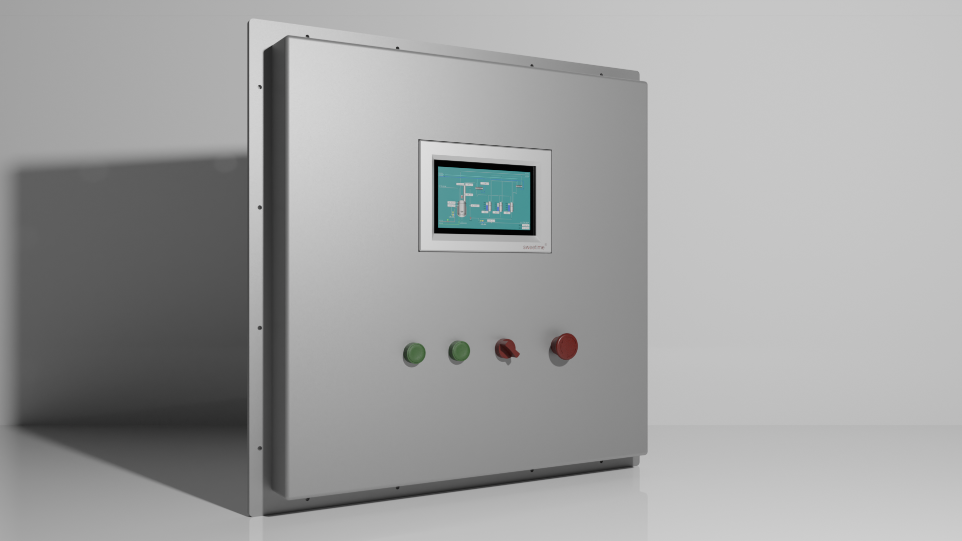

Intelligent Upgrade of Explosion-Proof Equipment:Serves directly as an input terminal for PLC control cabinets, perfectly replacing traditional explosion-proof keyboards, mice, or trackballs. It provides a more intuitive and efficient touch-based interaction method, streamlining operational procedures.

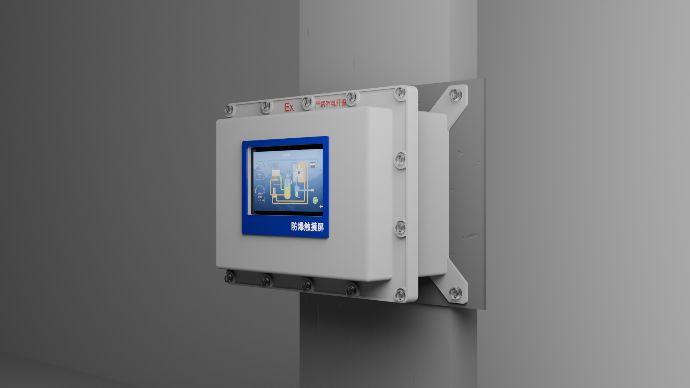

Integration into Embedded Explosion-Proof Enclosures:Designed specifically for built-in installation into explosion-proof cabinets, analyzer sheds, and other equipment. The module itself acts as a key component, facilitating easier compliance with national explosion-proof certification standards (e.g., Ex d), significantly shortening product development and certification cycles.
Extremely Harsh Industrial Environments:Widely used in hazardous areas with explosive atmospheres (Zone 1, Zone 2) such as petroleum, chemical, gas, pharmaceutical, and military industries. Its superior protection features also make it suitable for complex operating conditions involving high-intensity physical impact, vibration, dust, moisture, and chemical solvent corrosion.
